DIY Weller driver Gallery

I have received many pictures of  DIY Weller stations from people that have built them. I've gathered them here to give some inspiration, since they show various ingenious ways to make enclosure, stand, etc. If you want yours here, drop me an email. Address is at bottom of the page.

Bruno's station

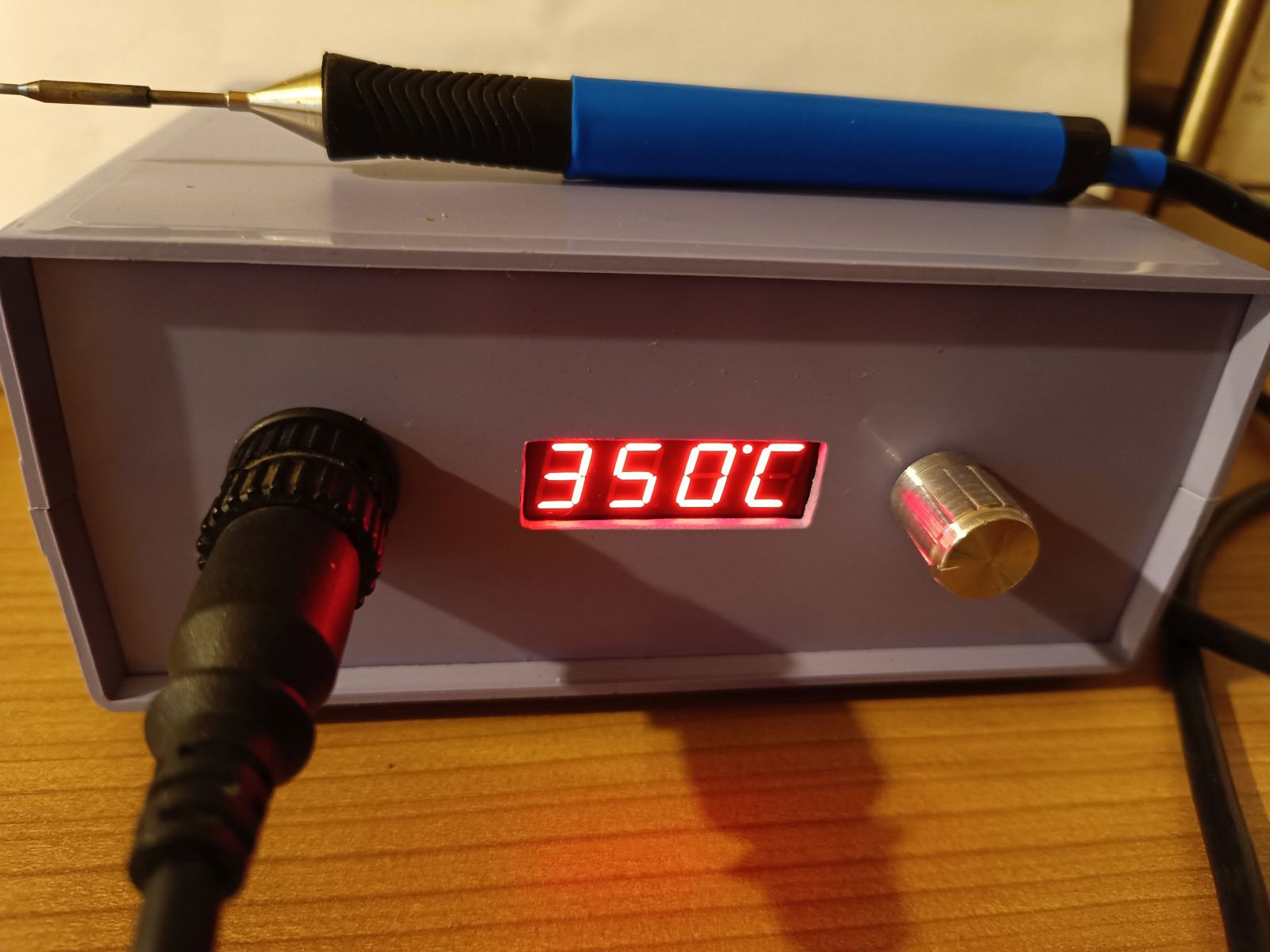

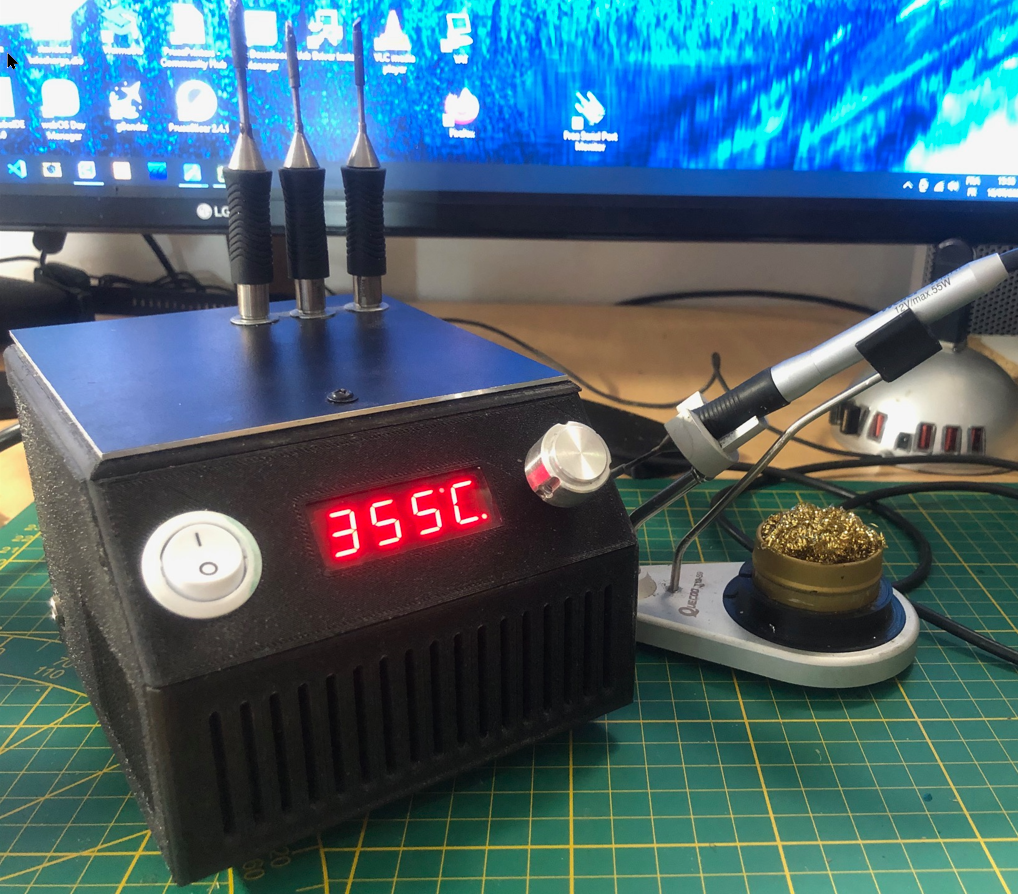

Bruno's station uses 3D printed enclosure.

Bruno's DIY Weller WMRP station

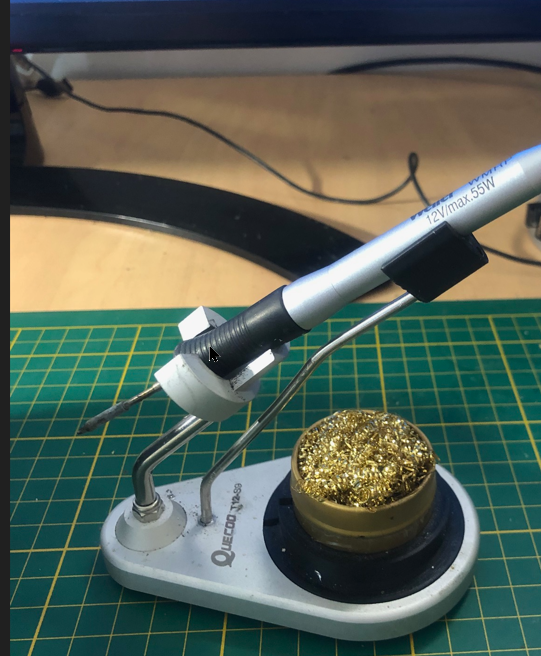

The stand is from China, but modified for WMRP.

Modified chinese stand

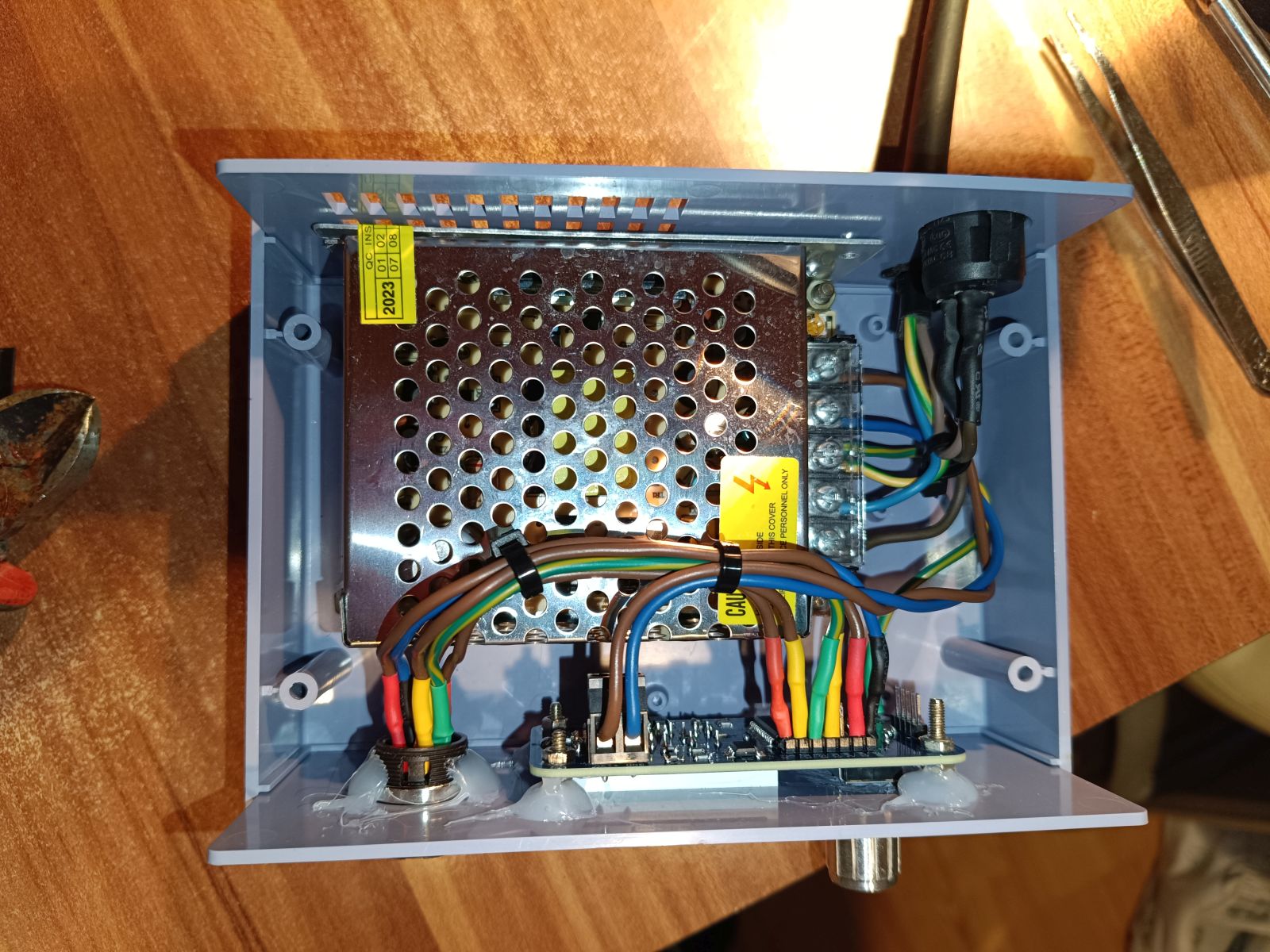

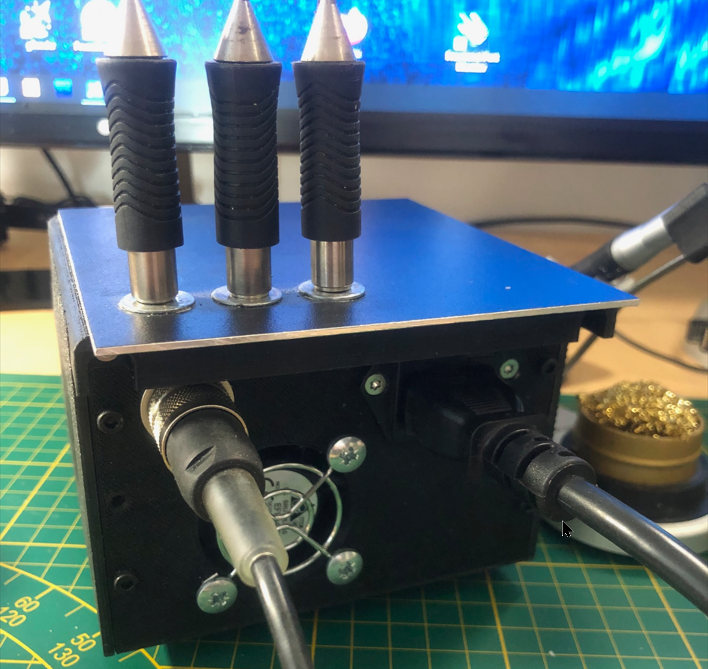

Inside the station is Chinese power supply. As a precaution, Bruno added a small fan with a temperature sensor, but the power supply doesn’t heat up at all, and the system has never been triggered, even with heavy use.

Cooling fan

Terry's station

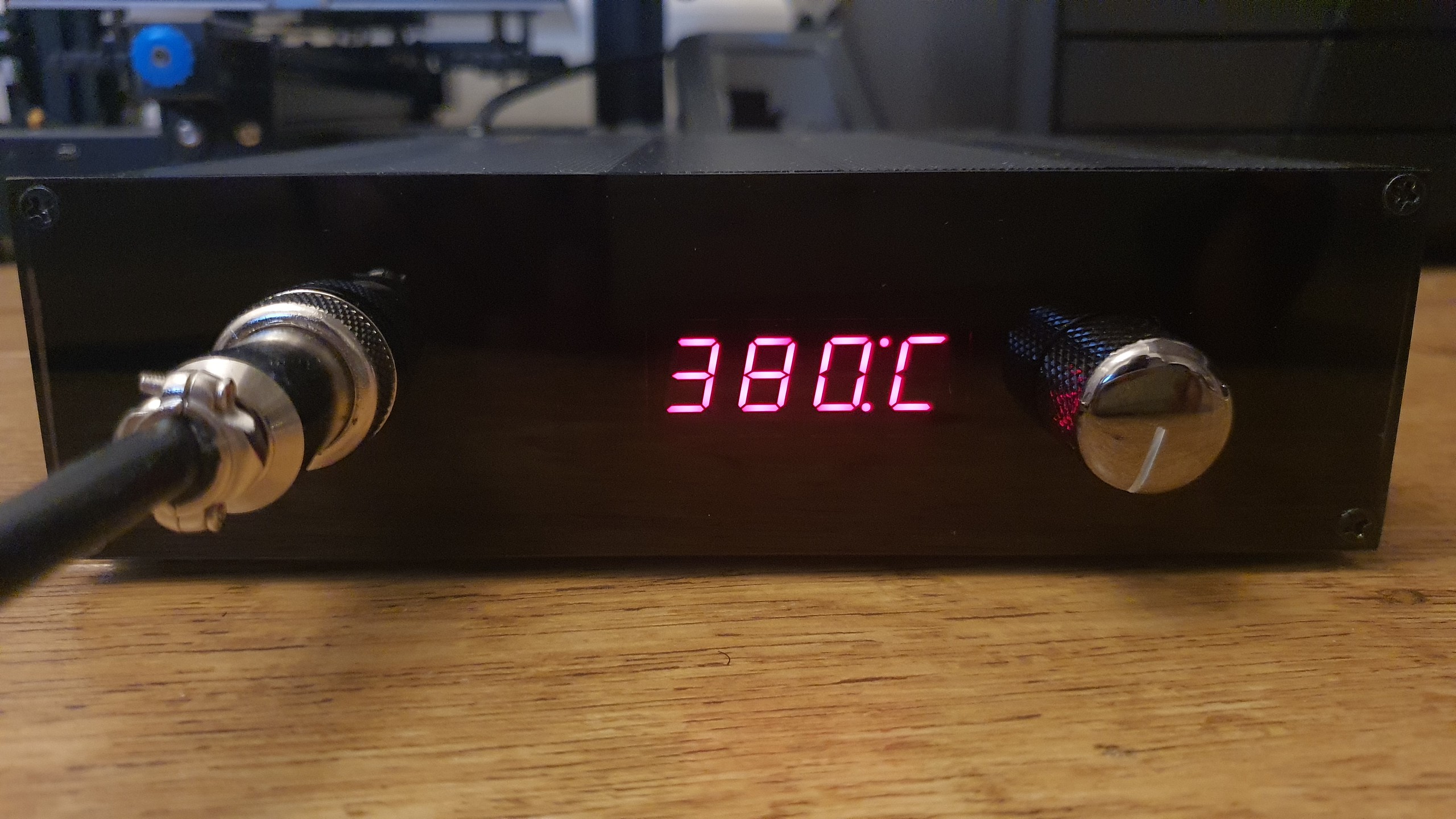

Weller WMRT station by Terry
Terry Glasgow from UK has built a cool looking enclosure for his station. He says: 'I used a 50x178x220mm Aluminium Case, for the front Panel I cut a piece of smoked Perspex to replace the Metal front and printed Rens 3D front panel and stuck it behind the Perspex. I also used Aviation Plugs as I have no intention of buying genuine Weller addons in the future.'

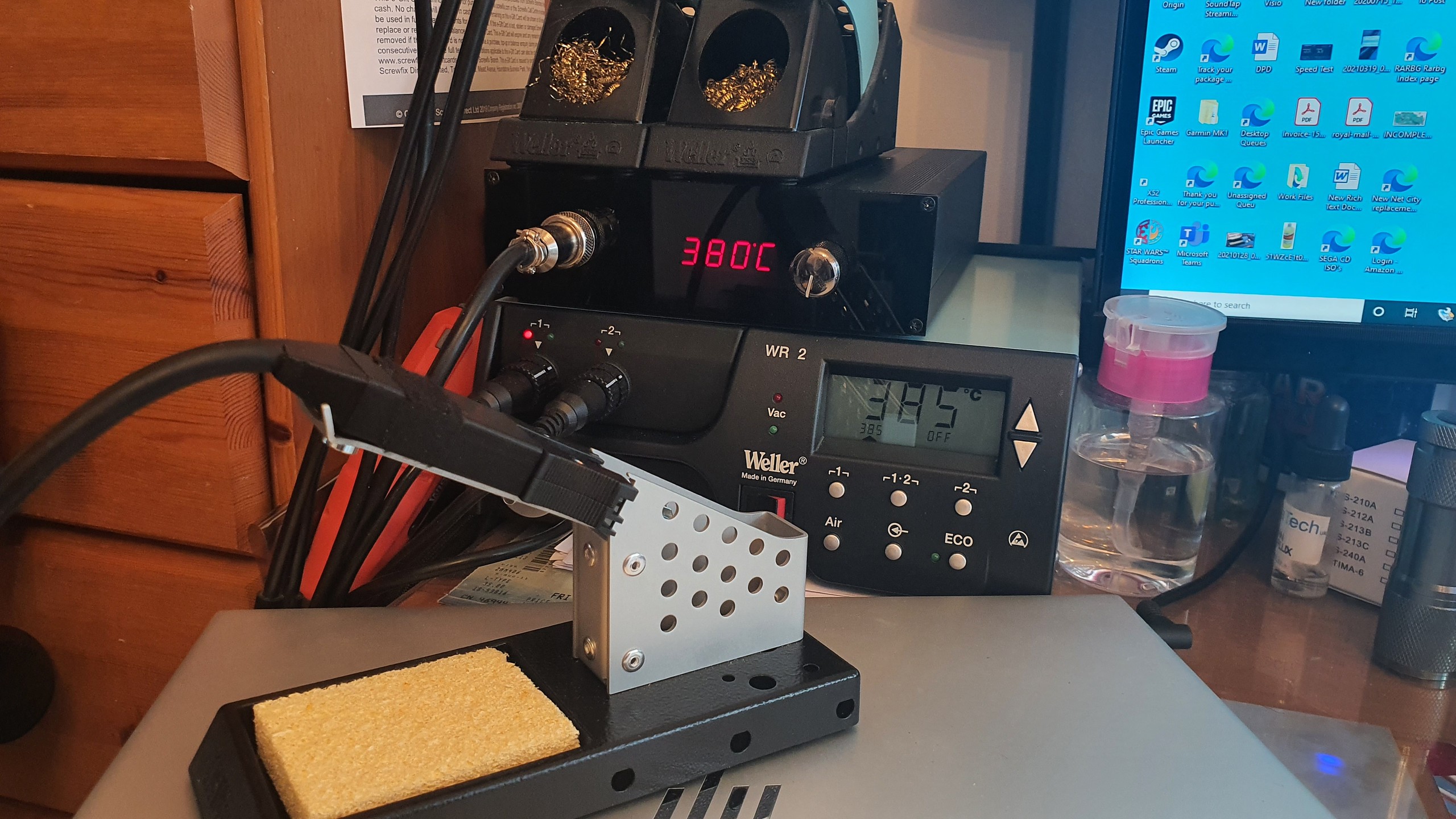

Terry's DIY WMRT station on top of Weller WR2
Terry's DIY station on top of a genuine Weller WR2 station.

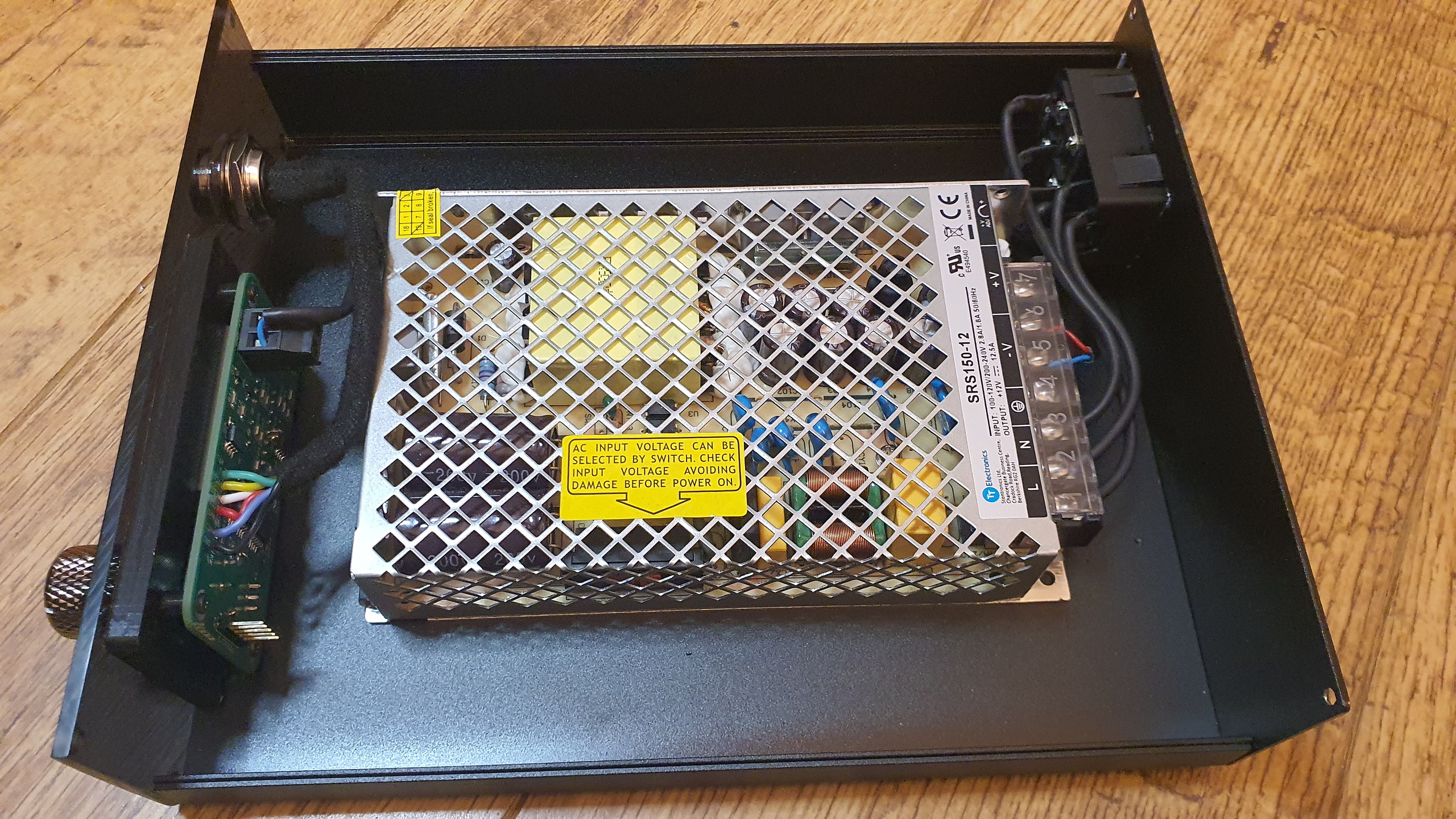

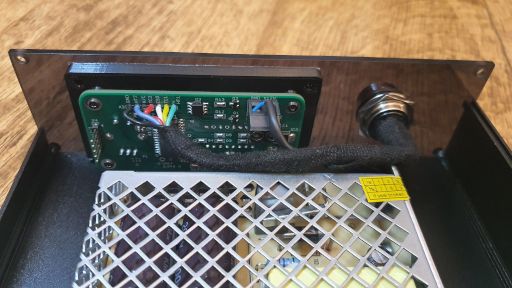

Inside view of Weller DIY soldering station
Front panel seen from inside.

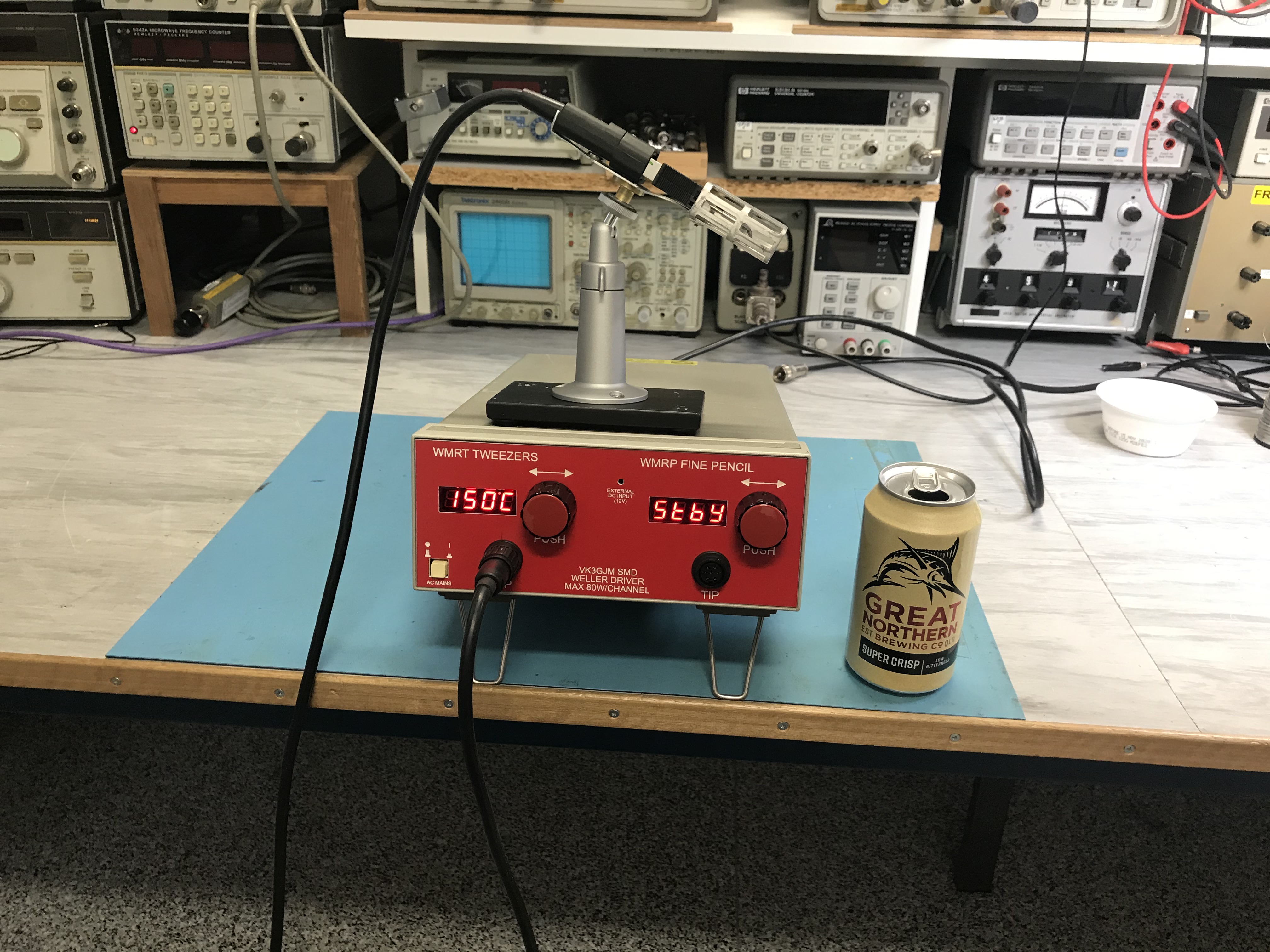

Gerald's dual station

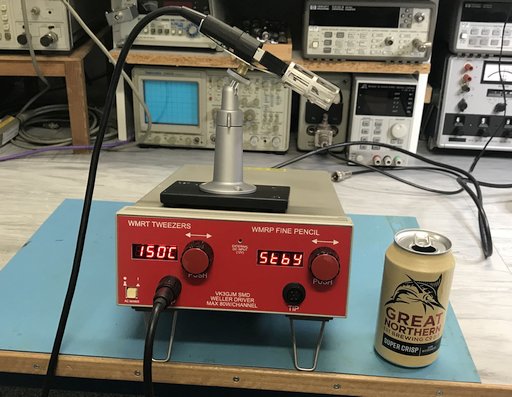

DIY Weller station by Gerald Molenkamp
Weller station by Gerald Molenkamp from Australia. He has done a dual output station, which allows to use the pen and tweezers at the same time. The enclosure is from some old Hewlett-Packard equipment, WMRT holder and handle improvised from random discarded stuff.

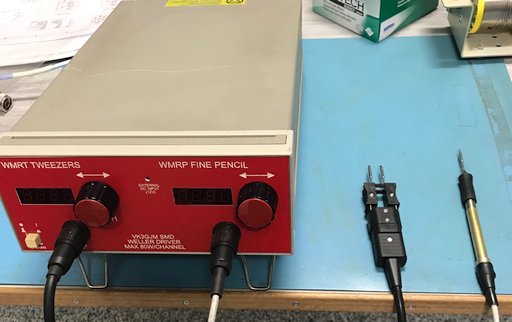

DIY Weller station with WMRP and WMRT
Another picture of Gerald's station.

Kevin's station

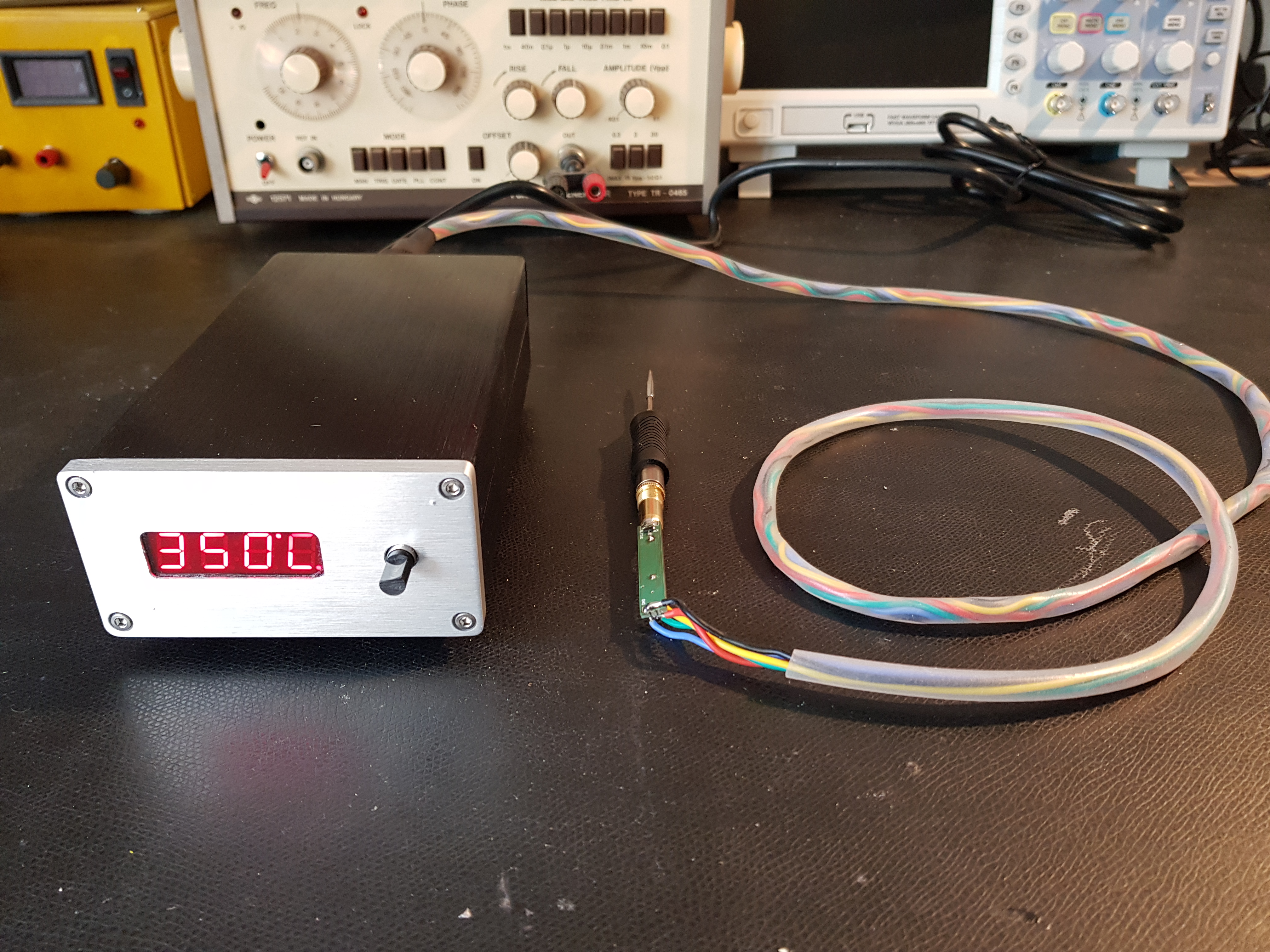

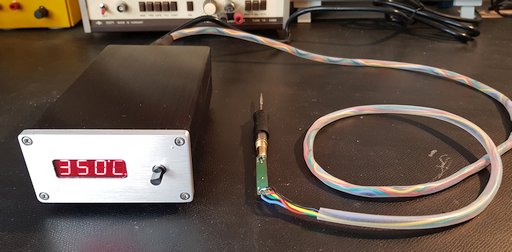

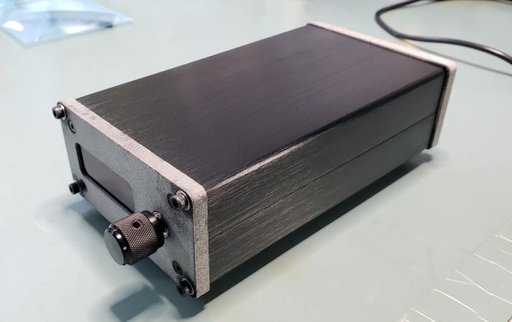

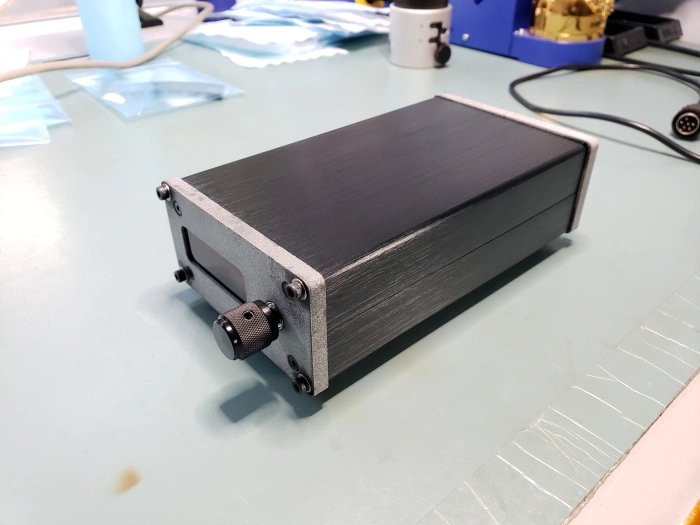

Kevin's DIY Weller soldering station
Kevin Aghaei has built the Weller station in the 0905 enclosure with 3D-printed front and rear panels. For more pictures and very nice and detailed build description, see his blog.

Rens's station

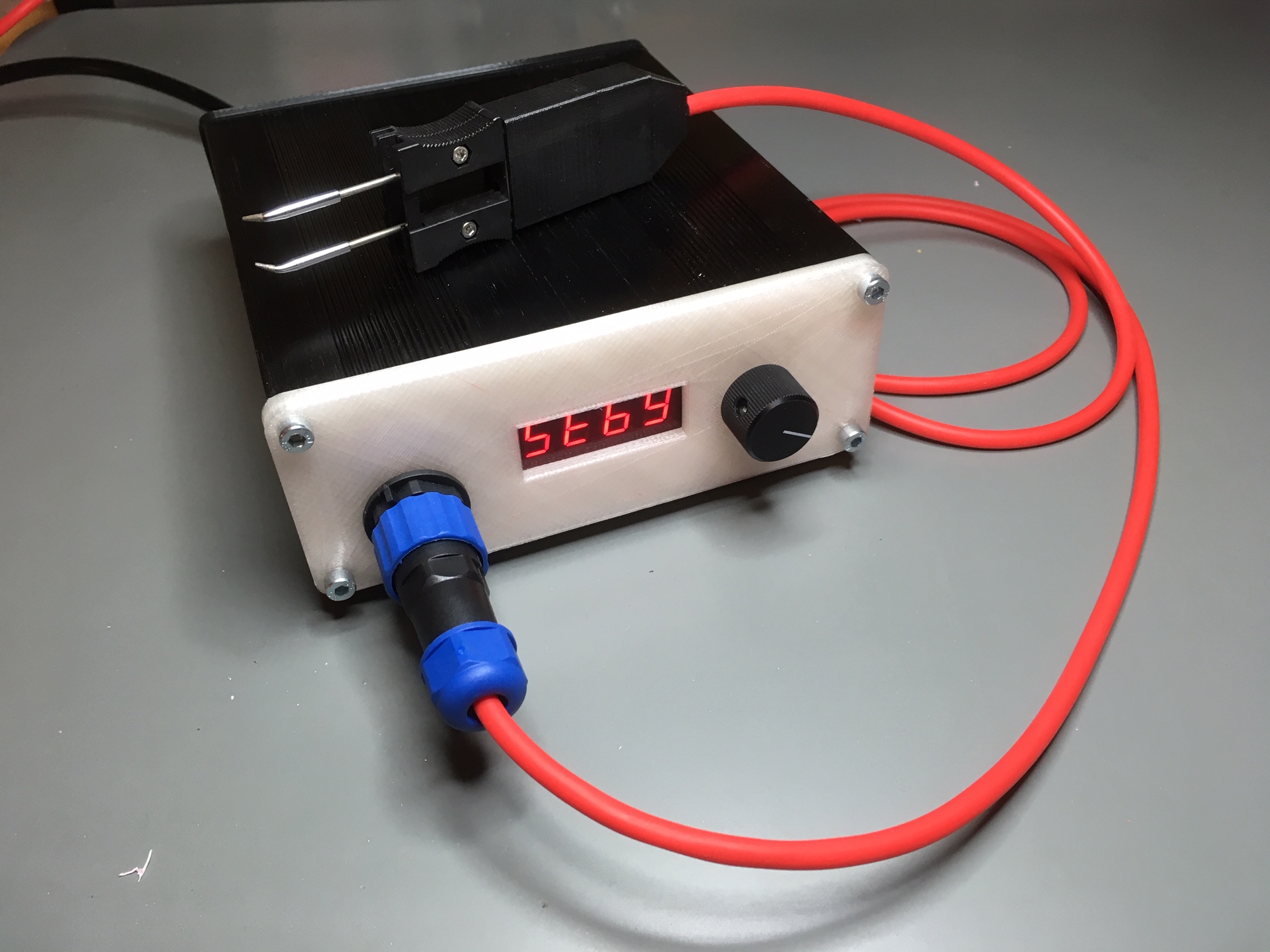

Diy Weller WMRT station
Rens PA3AXA and his friends have built many Weller stations. Here is picture of one of his builds. It is using bigger aluminum enclosure with 3D-printed front panel.
Download the front and back panel files from here: Weller_Case_Large.zip
Note that with 3D-printed front panel, the Weller controller PCB doesn't have connection to AC earth. I suggest to connect the Weller driver ground to AC protective earth. This helps to build a safe ESD environment, and it usually also eliminates noise problems which can cause flickering on temperature display.

Diy Weller WMRT station

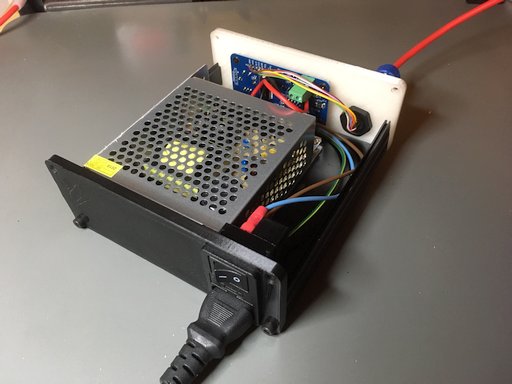

Inside view of the station

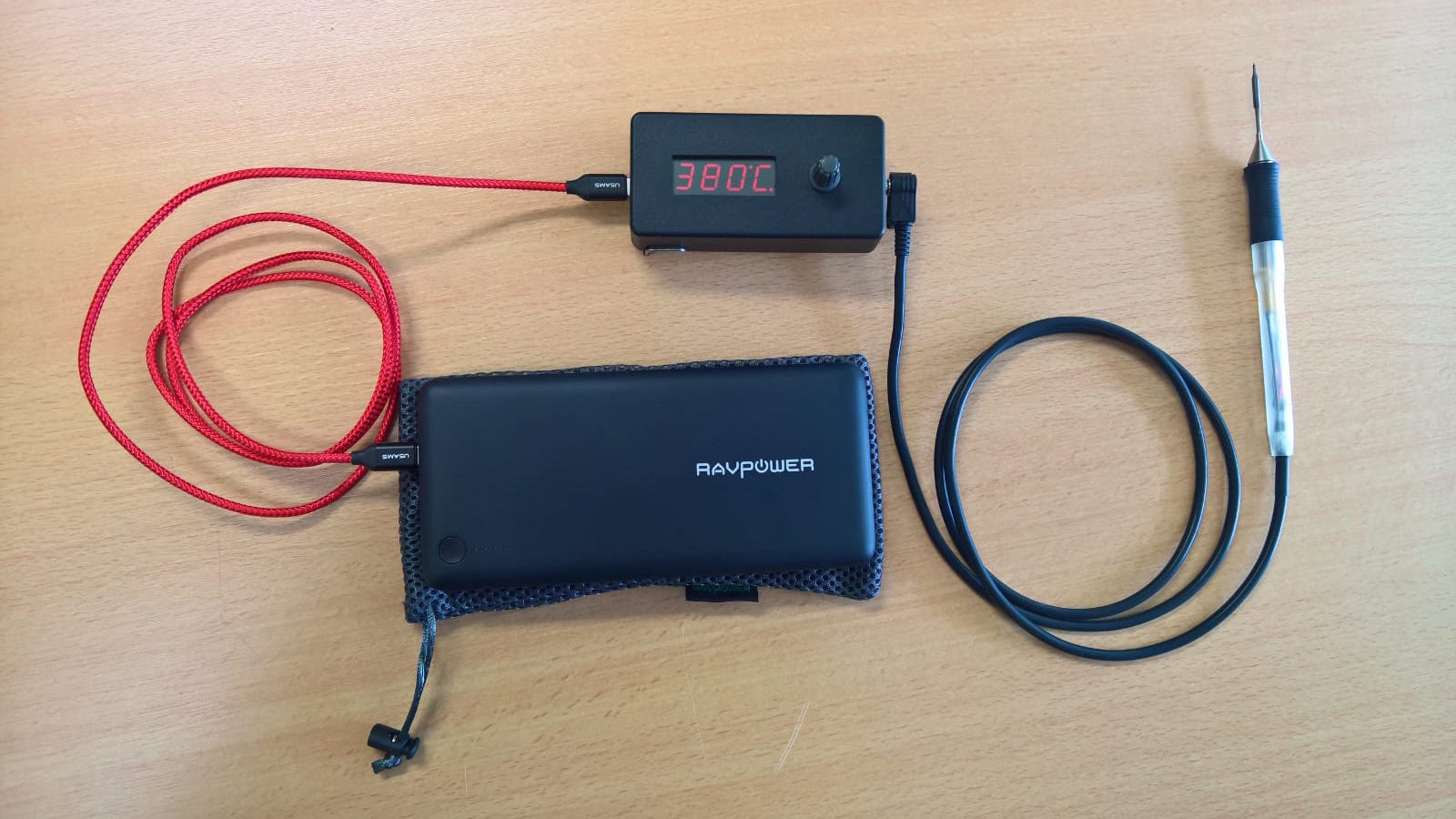

Portable battery powered Weller soldering station
A portable battery (Li-Ion) powered Weller soldering station
Portable battery powered Weller soldering station

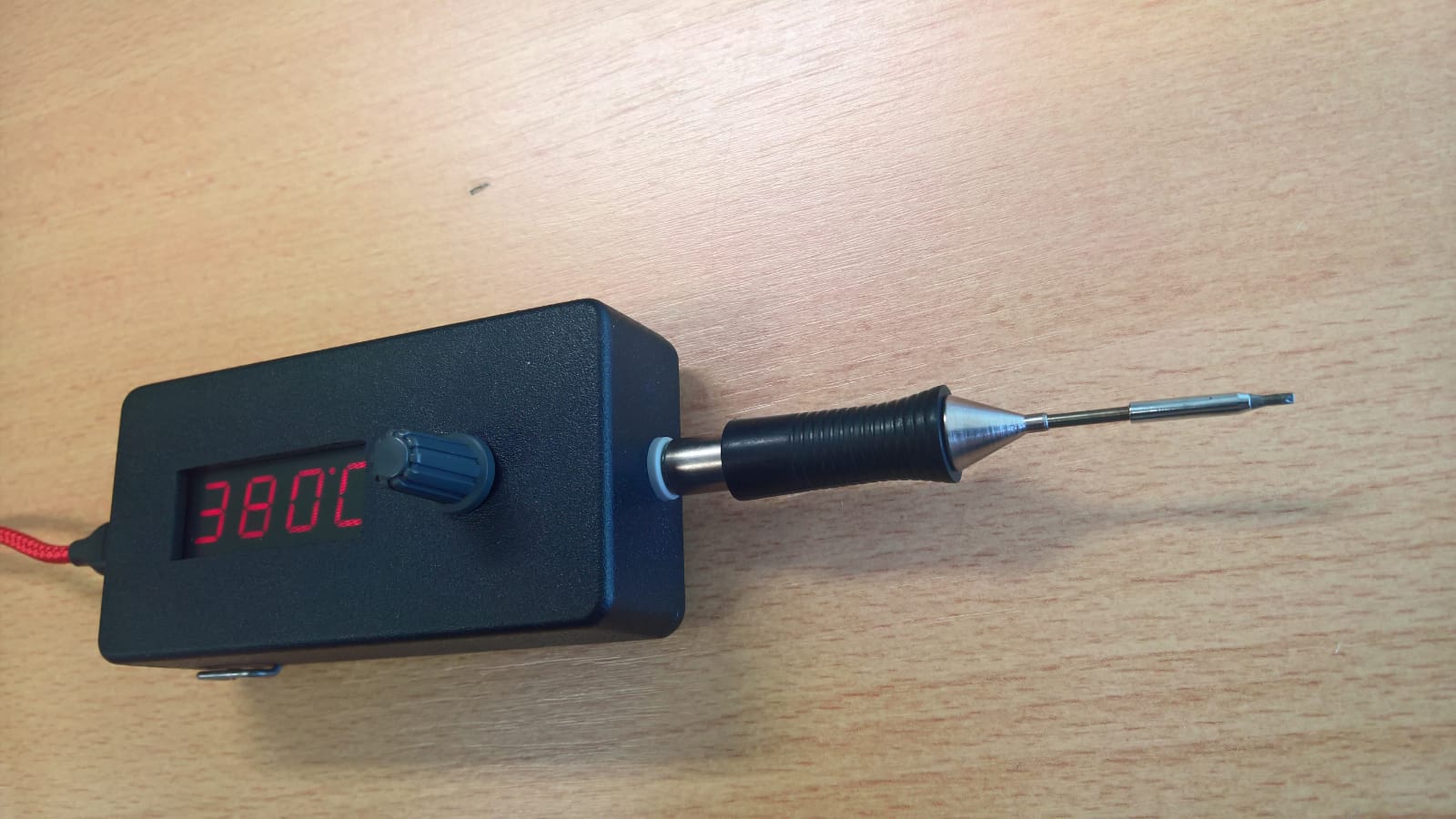

The tip can also be connected directly to the controller

Manuel's ATMEGA Weller station

Atmel ATMEGA Weller soldering station
Manuel Scholtz from Germany has ported my Weller driver from PIC to ATMEGA16! Above is picture of his build. Below are Eagle 9.1 design files, parts list and ATMEGA16 source code available for download. Unfortunately I can't provide support if you decide to build this version.

weller_driver_v12_atmega.zip                               Eagle 9.1 .sch and .brd
part list.xlsx                                                            Part list
Weller_driver_ATMEGA_Firmware_V1_01.zip   Firmware including source. Updated 30.1.2024 to v1.01, fixes operation with tweezers.

Bill's station

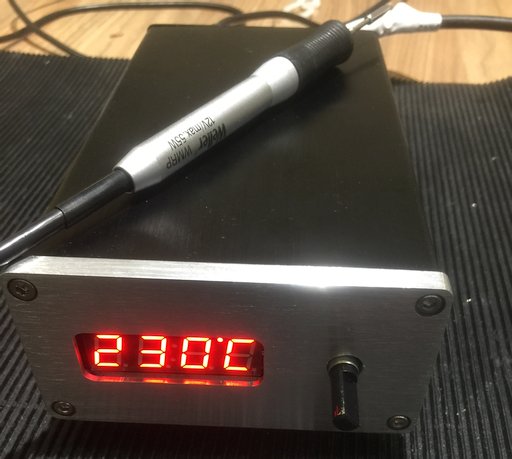

DIY Weller soldering station

Bill Watson from United Kingdom was probably one of the first people to send me a picture of weller station build. He has used the 0905 enclosure with milled front panel.
