Microchip ICD to PICkit adapter

This simple adapter allows to use Microchip ICD programmers with target boards with PICkit connector. It is also possible to do the opposite, connect PICkit programmer to RJ12, for example to be used with Tag-Connect programming cable. This board is essentially a clone of the Microchip AC164110, providing exactly the same functionality.

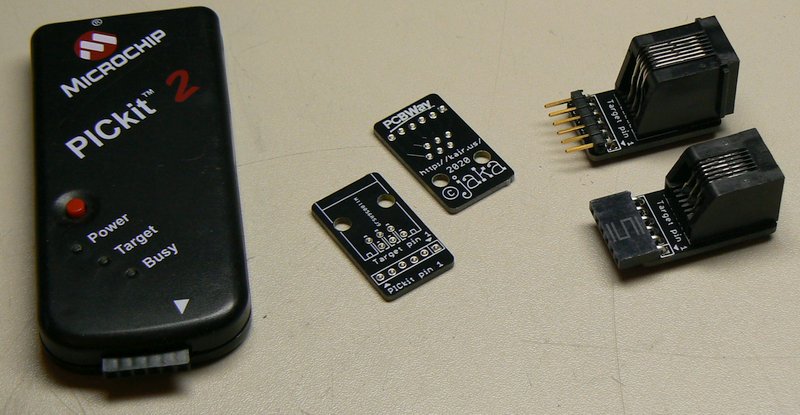

MPLAB ICD3 and ICD4 to PICkit adapter

The board is designed with Eagle 5.12. You can download the design and Gerber files below. You can order boards from PCBWay using this link.

icd2pickit.zip                Eagle .sch and .brd
icd2pickit_tdrops.zip    Gerber files

Bill of materials:
Description
Mfg#
Qty
CONN 6P6C MODULAR JACK (RJ12)
5555165-1 TE Connectivity
1
CONN 2.54 MM RIGHT ANGLE SOCKET
SSQ-106-02-T-S-RA Samtec
1

For use with PICkit programmer, you can use right angle pin header instead of the right angle socket strip.

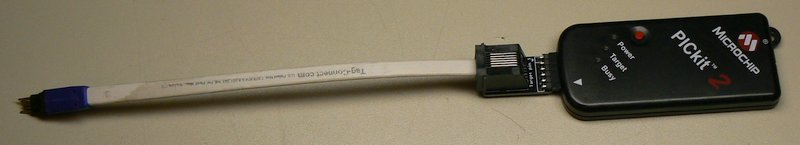

Tag-Connect TC2030-MCP connected to PICkit2 with the
      adapter

In above picture the adapter is used to connect Tag-Connect TC2030-MCP programming cable to PICkit2. In picture below, the adapter is used to connect ICD3 to 28-pin development board.

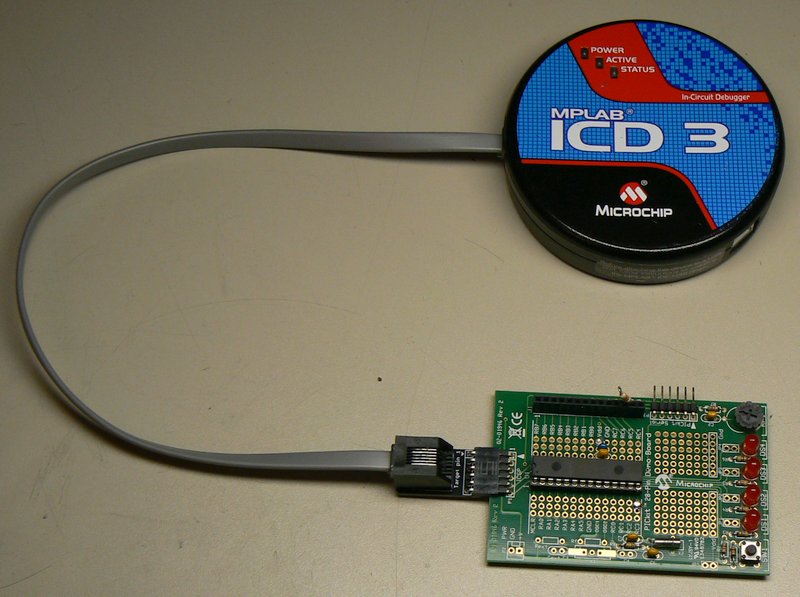

MPLAB
      ICD3 connected to 28-pin development board with the ICD2PICkit
      adapter
